cupro nickel pipe

C70600 , Copper nickel offers excellent corrosion resistance, especially in marine salt water environments. The main, wrought coppernickel alloys chosen for sea water service contain 10 or 30 percent nickel. They also have important additions of iron and manganese which are necessary to maintain good corrosion resistance.

TYPICAL USES for C70600 Copper Nickel "90/10:

AUTOMOTIVE: Power Steering Tube, Brake Lines
CONSUMER: Screw Lamp Bases
INDUSTRIAL: Condenser Plates, Condensers, Weld Torch Tips, Heat Exchanger Tubes, Valve Bodies, Evaporator Tubes, Pressure Vessels, Distiller Tubes, Pump Impellers for Oil Refining, Ferrules, Evaporators
MARINE: Boat Hulls, Tube Sheet for Salt Water Service, Salt Water Pipe Fittings, Salt Water Piping Systems, Salt Water Piling Wrap, Hot Water Tanks, Salt Water Baffles, Propeller Sleeves, Ship Hulls, Water Hoses
PLUMBING: Flanges

Equivalent Specifications

SPECIFICATIONS	DESIGNATION
ISO	CuNi10Fe1Mn
Europen	CuNi10Fe1Mn
BS	CN 102
JIS	C 7060
Russian	MNZMo10-1-1

Chemical Composition

	Cu	Fe	Pb	Mn	Ni	Zn
Min/Max	Rem	1.0 - 1.8	0.05	1	9.0 - 11.0	1
Nominals	88.6000	1.4000	-	-	10.0000	-

Physical Properties

Product Property	US Customary
Coefficient of Thermal Expansion	9.5 10⁻⁶Per °F (68-572 F)
Density	0.323 lb/in3 at 68 F
Electrical Conductivity	9 %IACS @ 68 F
Electrical Resistivity	115.0 ohms-cmil/ft @ 68 F
Melting Point - Liquidus	2100 F
Melting Point - Solidus	2010 F
Modulas of Elasticity in Tension	18000 ksi
Modulus of Rigidity	6800 ksi
Specific Gravity	8.94
Specific Heat Capacity	0.09 Btu/lb/°F at 68 F
Thermal Conductivity	26.0 BTU in/hr.ft².°F @ 68 F

Sizes Available

WIRE	1mm To 8mm
HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS/RODS	8mm To 100 mm
HEX	10mm To 60mm
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	AS per Specification

Ask for Price

Excellent hot and cold workability; good forge ability. Fabricated by bending, coining, coppersmith, drawing and upsetting, hot forging and pressing, knurling, roll threading, shearing, spinning, swaging, and stamping.

Good to excellent. Susceptible to galvanic corrosion when coupled with iron, aluminum, magnesium, leads, tin, and zinc. Good resistance to atmospheric, brackish water, sea water, and non-oxidizing acid corrosion, but avoid heating in oxidizing atmospheres or exposing to oxidizing acids, moist halogens, sulfides, ammonia, or solutions with ammonium ions.

Typical Applications:

Industrial: Condensers ,Condenser Plates, Evaporator Tubes , Ferrules , Heat Exchanger Tubes, Corrosion Resistanc Corrosion Resistanc, Petrochemicals, Salt Water, Erosion and Impingement, Moderate Strength, Retains Strength at High Temperatures
Marine: Condenser Intake Systems , Salt Water Piping

Equivalent Specifications

SPECIFICATIONS	DESIGNATION
ISO	CuNi5Fe1Mn
BS	CN 101
Russian	MNZ5-1

Chemical Composition

	Cu	Fe	Pb	Mn	Ni	Zn
Min/Max	Rem	1.3 - 1.7	0-.05	0.3-0.8	4.8 – 6.2	0-1.0

Physical Properties

Melting Point - Liquidus°F	2050
Densitylb/cu in. at 68°F	0.323
Specific Gravity	8.94
Electrical Conductivity% IACS at 68°F	14
Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F	37
Coefficient of Thermal Expansion 68-572 10⁻⁶Per °F (68-572 F)	9.7
Specific Heat CapacityBtu/lb/°F at 68°F	0.09
Modulus of Elasticity in Tensionksi	17000
Modulus of Rigidityksi	6400

Sizes Available

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS/RODS	8mm To 100 mm
HEX	10mm To 60mm>
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	AS per Specification

Ask for Price

C70600 , Copper nickel offers excellent corrosion resistance, especially in marine salt water environments. The main, wrought coppernickel alloys chosen for sea water service contain 10 or 30 percent nickel. They also have important additions of iron and manganese which are necessary to maintain good corrosion.

TYPICAL USES for C70600 Copper Nickel "90/10":

AUTOMOTIVE: Power Steering Tube, Brake Lines
CONSUMER: Screw Lamp Bases
INDUSTRIAL: Condenser Plates, Condensers, Weld Torch Tips, Heat Exchanger Tubes, Valve Bodies, Evaporator Tubes, Pressure Vessels, Distiller Tubes, Pump Impellers for Oil Refining, Ferrules, Evaporators
MARINE: Boat Hulls, Tube Sheet for Salt Water Service, Salt Water Pipe Fittings, Salt Water Piping Systems, Salt Water Piling Wrap, Hot Water Tanks, Salt Water Baffles, Propeller Sleeves, Ship Hulls, Water Hoses
PLUMBING: Flanges

Equivalent Specifications

SPECIFICATIONS	DESIGNATION
ISO	CuNi10Fe1Mn
Europen	CuNi10Fe1Mn
BS	CN 102
JIS	C 7060
Russian	MNZMo10-1-1

Chemical Composition

	Cu	Fe	Pb	Mn	Ni	Zn
Min/Max	Rem	1.0 - 1.8	0.05	1	9.0 - 11.0	1
Nominals	88.6000	1.4000	-	-	10.0000	-

Physical Properties

Product Property	US Customary
Coefficient of Thermal Expansion	9.5 10⁻⁶Per °F (68-572 F)
Density	0.323 lb/in3 at 68 F
Electrical Conductivity	9 %IACS @ 68 F
Electrical Resistivity	115.0 ohms-cmil/ft @ 68 F
Melting Point - Liquidus	2100 F
Melting Point - Solidus	2010 F
Modulas of Elasticity in Tension	18000 ksi
Modulus of Rigidity	6800 ksi
Specific Gravity	8.94
Specific Heat Capacity	0.09 Btu/lb/°F at 68 F
Thermal Conductivity	26.0 BTU in/hr.ft².°F @ 68 F

Sizes Available

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS/RODS	8mm To 100 mm
HEX	10mm To 60mm>
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	AS per Specification

Ask for Price

Excellent hot and cold workability; good forge ability. Fabricated by bending, coining, coppersmith, drawing and upsetting, hot forging and pressing, knurling, roll threading, shearing, spinning, swaging, and stamping.

Good to excellent. Susceptible to galvanic corrosion when coupled with iron, aluminum, magnesium, leads, tin, and zinc. Good resistance to atmospheric, brackish water, sea water, and non-oxidizing acid corrosion, but avoid heating in oxidizing atmospheres or exposing to oxidizing acids, moist halogens, sulfides, ammonia, or solutions with ammonium ions.

TYPICAL USES for C70600 Copper Nickel "90/10":

Industrial: Condensers ,Condenser Plates, Evaporator Tubes , Ferrules , Heat Exchanger Tubes, Corrosion Resistanc Corrosion Resistanc, Petrochemicals, Salt Water, Erosion and Impingement, Moderate Strength, Retains Strength at High Temperatures.
Marine: Condenser Intake Systems , Salt Water Piping

Equivalent Specifications

SPECIFICATIONS	DESIGNATION
ISO	CuNi5Fe1Mn
BS	CN 101
Russian	MNZ5-1

Chemical Composition

	Cu	Fe	Pb	Mn	Ni	Zn
Min/Max	Rem	1.3 - 1.7	0.05	0.3-0.8	4.8 – 6.2	0-1.0

Physical Properties

Melting Point - Liquidus°F	2050
Densitylb/cu in. at 68°F	0.323
Specific Gravity	8.94
Electrical Conductivity% IACS at 68°F	14
Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F	37
Coefficient of Thermal Expansion 68-572 10⁻⁶Per °F (68-572 F)	9.7
Specific Heat CapacityBtu/lb/°F at 68°F	0.09
Modulus of Elasticity in Tensionksi	17000
Modulus of Rigidityksi	6400

Sizes Available

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS/RODS	8mm To 100 mm
HEX	10mm To 60mm>
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	AS per Specification

Ask for Price

C70600 , Copper nickel offers excellent corrosion resistance, especially in marine salt water environments. The main, wrought coppernickel alloys chosen for sea water service contain 10 or 30 percent nickel. They also have important additions of iron and manganese which are necessary to maintain good corrosion resistance.

TYPICAL USES for C70600 Copper Nickel "90/10":

AUTOMOTIVE: Power Steering Tube, Brake Lines
CONSUMER: Screw Lamp Bases
INDUSTRIAL: Condenser Plates, Condensers, Weld Torch Tips, Heat Exchanger Tubes, Valve Bodies, Evaporator Tubes, Pressure Vessels, Distiller Tubes, Pump Impellers for Oil Refining, Ferrules, Evaporators
MARINE: Boat Hulls, Tube Sheet for Salt Water Service, Salt Water Pipe Fittings, Salt Water Piping Systems, Salt Water Piling Wrap, Hot Water Tanks, Salt Water Baffles, Propeller Sleeves, Ship Hulls, Water Hoses
PLUMBING: Flanges

Equivalent Specifications

SPECIFICATIONS	DESIGNATION
ISO	CuNi10Fe1Mn
Europen	CuNi10Fe1Mn
BS	CN 102
JIS	C 7060
Russian	MNZMo10-1-1

Chemical Composition

	Cu	Fe	Pb	Mn	Ni	Zn
Min/Max	Rem	1.0 - 1.8	0.05	1	9.0 - 11.0	1
Nominals	88.6000	1.4000	-	-	10.0000	-

Physical Properties

Product Property	US Customary
Coefficient of Thermal Expansion	9.5 10⁻⁶Per °F (68-572 F)
Density	0.323 lb/in3 at 68 F
Electrical Conductivity	9 %IACS @ 68 F
Electrical Resistivity	115.0 ohms-cmil/ft @ 68 F
Melting Point - Liquidus	2100 F
Melting Point - Solidus	2010 F
Modulas of Elasticity in Tension	18000 ksi
Modulus of Rigidity	6800 ksi
Specific Gravity	8.94
Specific Heat Capacity	0.09 Btu/lb/°F at 68 F
Thermal Conductivity	26.0 BTU in/hr.ft².°F @ 68 F

Sizes Available

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS/RODS	8mm To 100 mm
HEX	10mm To 60mm>
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	AS per Specification

BS 2871 Part 3 Cn 102 Copper Nickel Tube

Ask for Price

CuNi6 is a copper-nickel alloy (CuNi alloy) with low resistivity suitable for use at temperatures up to 300°C (570°F).
Wire in CuNi6 is typically used for low-temperature applications such as heating cables.

Equivalent Specifications

SPECIFICATIONS	DESIGNATION
ISO	CuCr1Zr
Europen	CuCr1Zr
BS	CC 102

Chemical Composition

	Ni %	Cu %
Nominals	6.0	Bal.

Mechanical Properties

Wire size	Yield strength	Tensile strength	Elongation
Ø	Rp0.2	Rm	A
mm	MPa	Mpa	%
1.00	110	280	30

Physical Properties

Density g/cm3	8.9
Electrical resistivity at 20°C Ω mm2/m	0.10

Temperature Factor Of Resistivity

Temperature °C	20	100	200	300
Ct	1.00	1.06	1.11	1.19

Thermal Conductivity

Temperature °C	20
W m-1 K-1	90

Specific Heat Capacity

Temperature °C	20
kJ kg-1 K-1	0.380
Melting point °C	1095
Max continuous operating temperature in air °C	300
Magnetic properties	The material is non-magnetic

En 12451 Cuni10 Fe 1mn Copper Nickel Tube

Ask for Price

C70600 , Copper nickel offers excellent corrosion resistance, especially in marine salt water environments. The main, wrought coppernickel alloys chosen for sea water service contain 10 or 30 percent nickel. They also have important additions of iron and manganese which are necessary to maintain good corrosion resistance.

TYPICAL USES for C70600 Copper Nickel "90/10":

AUTOMOTIVE: Power Steering Tube, Brake Lines
CONSUMER: Screw Lamp Bases
INDUSTRIAL: Condenser Plates, Condensers, Weld Torch Tips, Heat Exchanger Tubes, Valve Bodies, Evaporator Tubes, Pressure Vessels, Distiller Tubes, Pump Impellers for Oil Refining, Ferrules, Evaporators
MARINE: Boat Hulls, Tube Sheet for Salt Water Service, Salt Water Pipe Fittings, Salt Water Piping Systems, Salt Water Piling Wrap, Hot Water Tanks, Salt Water Baffles, Propeller Sleeves, Ship Hulls, Water Hoses
PLUMBING: Flanges

Equivalent Specifications

SPECIFICATIONS	DESIGNATION
ISO	CuNi10Fe1Mn
Europen	CuNi10Fe1Mn
BS	CN 102
JIS	C 7060
Russian	MNZMo10-1-1

Chemical Composition

	Cu	Fe	Pb	Mn	Ni	Zn
Min/Max	Rem	1.0 - 1.8	0.05	1	9.0 - 11.0	1
Nominals	88.6000	1.4000	-	-	10.0000	-

Physical Properties

Product Property	US Customary
Coefficient of Thermal Expansion	9.5 10⁻⁶Per °F (68-572 F)
Density	0.323 lb/in3 at 68 F
Electrical Conductivity	9 %IACS @ 68 F
Electrical Resistivity	115.0 ohms-cmil/ft @ 68 F
Melting Point - Liquidus	2100 F
Melting Point - Solidus	2010 F
Modulas of Elasticity in Tension	18000 ksi
Modulus of Rigidity	6800 ksi
Specific Gravity	8.94
Specific Heat Capacity	0.09 Btu/lb/°F at 68 F
Thermal Conductivity	26.0 BTU in/hr.ft².°F @ 68 F

Sizes Available

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS/RODS	8mm To 100 mm
HEX	10mm To 60mm>
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	AS per Specification

Nfa51 102 Cuni10 Fe1mn Copper Nickel Tube

Ask for Price

C71500, Copper nickel offers excellent corrosion resistance, especially in marine salt water environments. The main, wrought coppernickel alloys chosen for sea water service contain 10 or 30 percent nickel. They also have important additions of iron and manganese which are necessary to maintain good corrosion resistance. Some common applications for copper nickel include: valves, and pump components.

Typical Applications:

INDUSTRIAL: Pump Impellers, Heat Exchanger Tubes, Evaporator Tubes, Distiller Tubes, Condenser Plates, Refrigerators, Process Equipment, Condenser Components, Ferrules, Welding Backing Rings, Flexible Metal Hose, Weld Wire, Boiler Parts, Condensers, Propeller Sleeves, Heat Exchanger Components
MARINE: Salt Water Flanges, Salt Water Piping, Valve Bodies, Sea Water Service, Fittings, Sea Water Condensers, Salt Water Pipe Fittings, Water Boxes - Salt Water Applications, Pump Bodies and Internal Parts-Sea Water

Equivalent Specifications

SPECIFICATIONS	DESIGNATION
ISO	CuNi30Mn1Fe
Europen	CuNi30Mn1Fe
BS	CN 107
JIS	C 7150
Russian	MNZMo30-1-1

Chemical Composition

	Cu	Fe	Pb	Sn	Zn
Min/Max	Rem	0.40 - 1.0	0.05	1	29.0 - 33.0	1
Nominals	69.5000	0.5000	-	-	30.0000	-

Physical Properties

Coefficient of Thermal Expansion	9.0 10⁻⁶Per °F (68-572 F)
Density	0.323 lb/in3 at 68 F
Electrical Conductivity	4 %IACS @ 68 F
Electrical Resistivity	225.0 ohms-cmil/ft @ 68 F
Melting Point Liquid US	2260 F
Melting Point Solid US	2140 F
Modulas of Elasticity in Tension	22000 ksi
Modulas of Rigidity	8300 ksi
Specific Gravity	8.94
Specific Heat Capacity	0.09 Btu/lb/°F at 68 F
Thermal Conductivity	17.0 BTU in/hr.ft².°F @ 68 F

Sizes Available

WIRE	1mm To 8mm
HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS/RODS	6mm To 130 mm
HEX	5mm To 60mm
SQUARE	4mm To 60mm
FLAT	5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS	AS per Customer Drawing
BILLETS	Up to 200 mm
INGOTS	AS per Specification

90/10 Cupro Nickel Pipe

95/5 Cupro Nickel Pipe

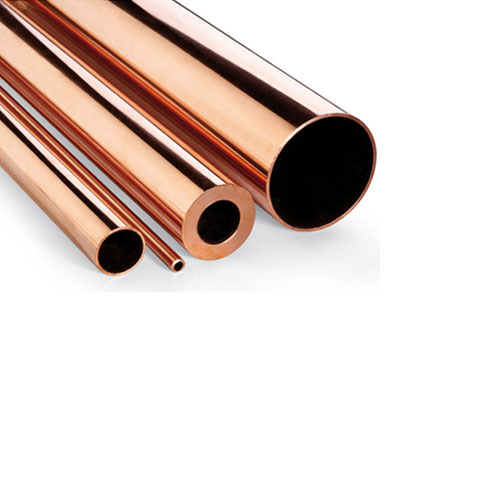

Astm B 111 C 70600 Copper Nickel Tube
